Key Features

Powerful 212cc 7HP OHV engine
Fully automatic
Torque converter CVT system, more low-end torque

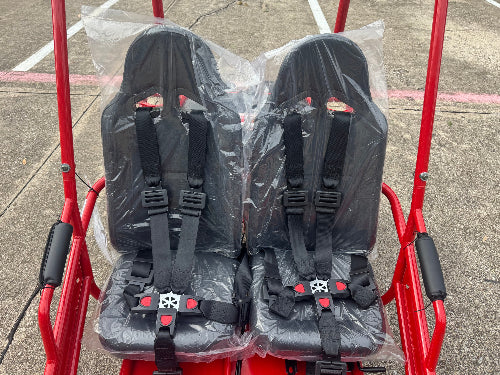

5-Point safety harness seatbelt
Rack and pinion steering wheel
Hydraulic disc brake
Individual sporting seats
Adjustable driver seat: pedal to seat back adjustable from 28.5” to 33”
Easy assembly: Only roll cage, steering wheel and seats

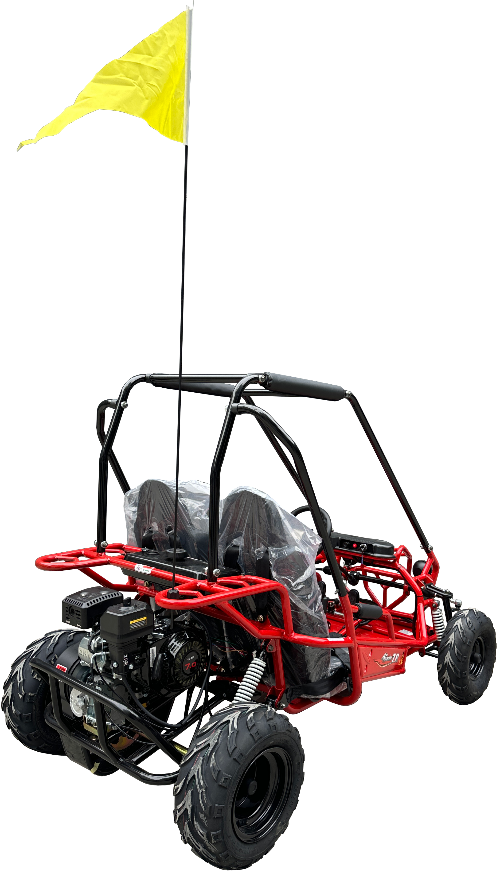

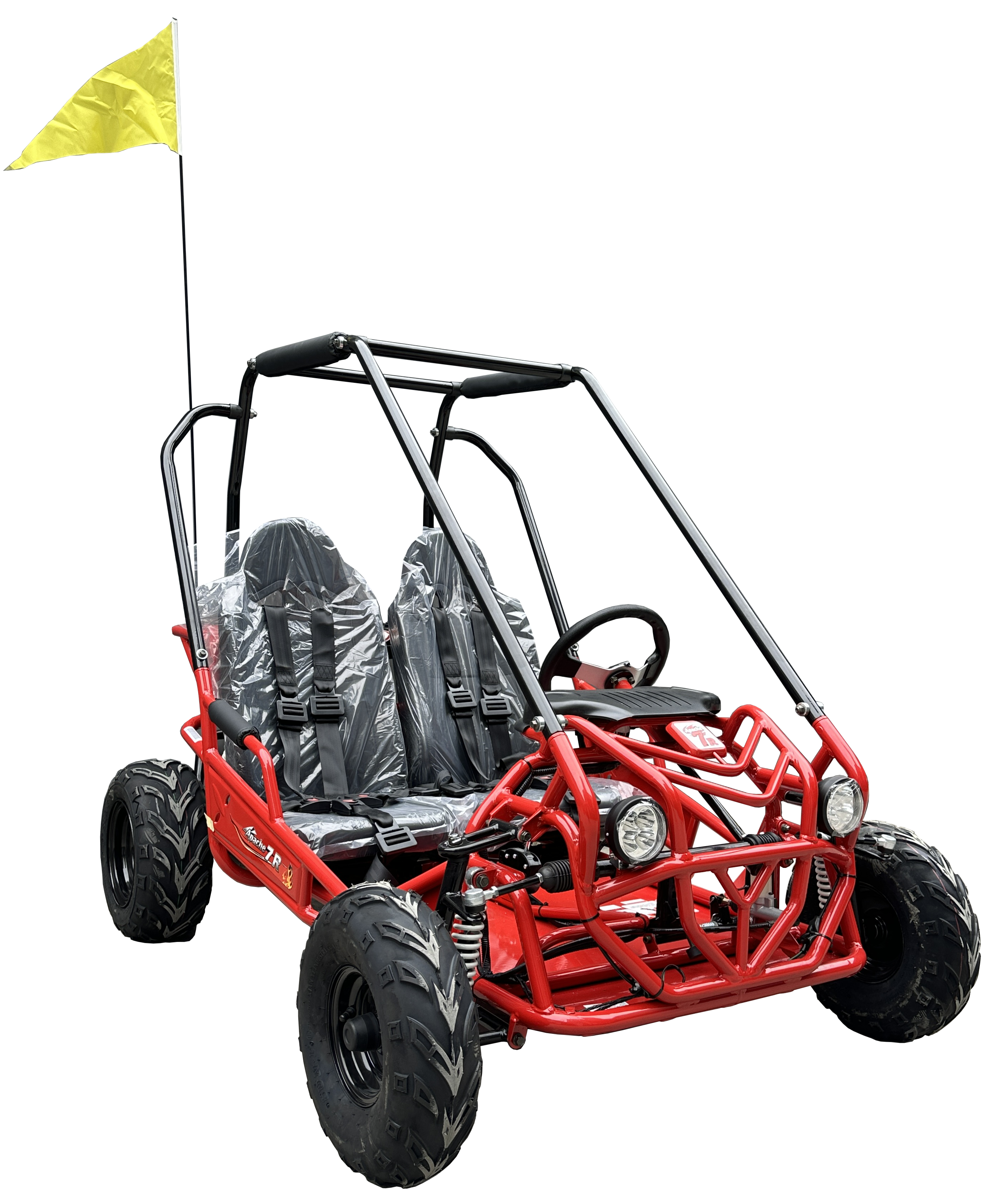

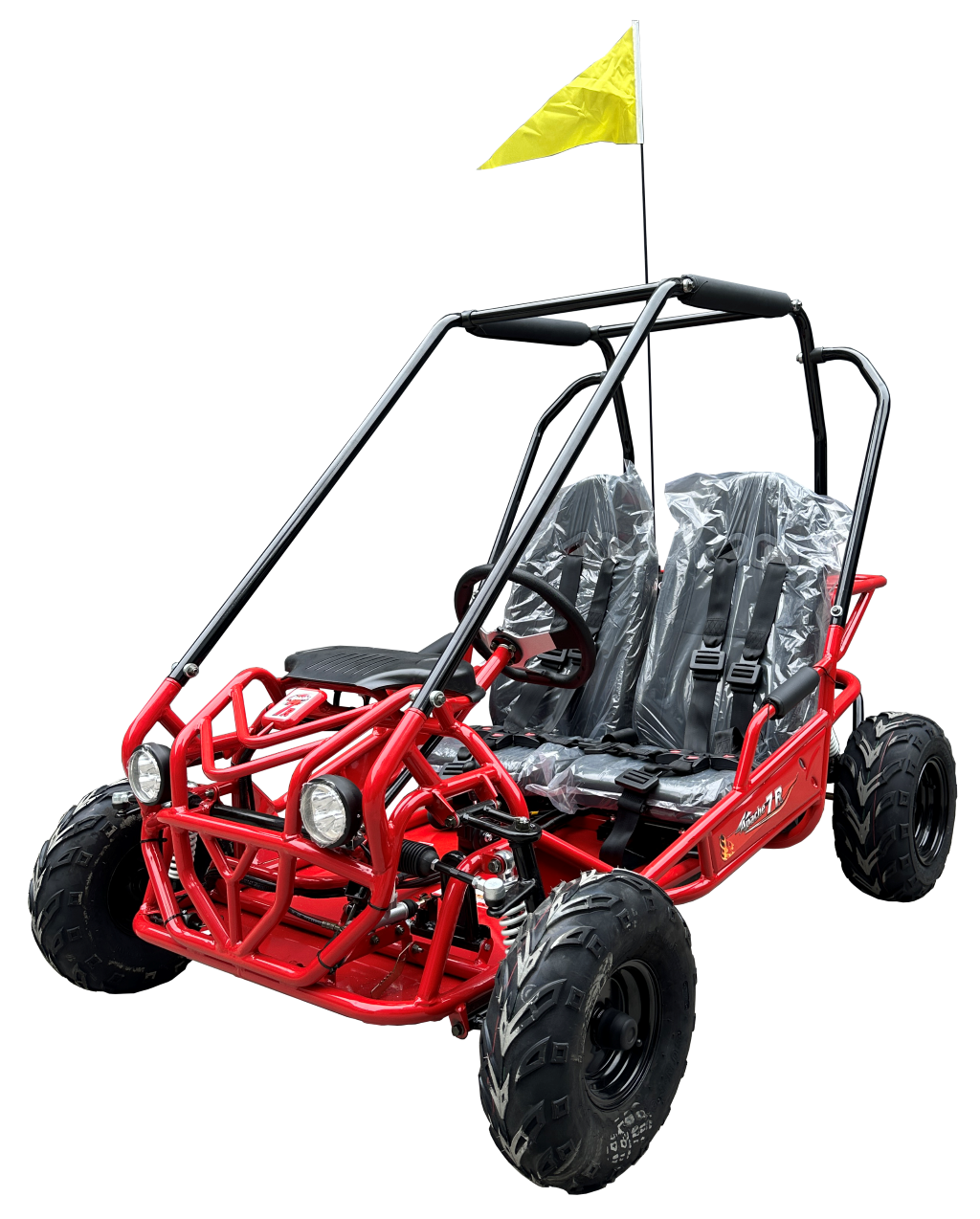

The all-new TrailMaster Apache 7 is built for young riders who are ready for real off-road adventure. Designed for ages 10 and up, this rugged youth go kart combines proven TrailMaster performance, safety-focused features, and aggressive off-road styling into one exciting package. Powered by a dependable 212cc air-cooled 4-stroke engine with easy pull-start operation, the Apache 7 delivers smooth, reliable power from one of the world’s leading builders of off-road go karts.

Built on a heavy-duty frame with a full roll cage and over-the-shoulder safety harnesses, the Apache 7 is designed to help keep young riders secure while tackling trails, dirt paths, and open terrain. Parents will appreciate the adjustable throttle limiter, which allows the vehicle’s top speed to be reduced for younger or less experienced drivers.

Unlike basic youth go karts, the Apache 7 features true off-road suspension with dual A-arm front suspension, front and rear coil-over shocks, and oversized off-road tires for improved ground clearance and a smoother ride over rough terrain. Hydraulic disc brakes on both the front and rear provide confident stopping power when it matters most.

The adjustable seating position accommodates growing riders, with a seat-to-pedal distance adjustable from approximately 28.5" to 33". The solid rear axle drives both rear wheels together for maximum traction and plenty of fun in dirt, gravel, and loose terrain.

Whether it’s trail riding, exploring property, or weekend fun with the family, the TrailMaster Apache 7 is a durable, capable youth go kart built to deliver years of off-road excitement.

Specifications

Engine Information

EPA certificated
Engine type: 4-stroke, single cylinder, air cooled
Displacement: 212cc
Max HP: 7hp/3600rpm
Max torque: 12.5N·m/2500 r/min
Bore x stroke: ø70x55
Max speed: 24 mph
Climbing ability: 12 degrees
Starting system: Pull Start
Carburetor brand: JF (RX)
Engine oil: SG15W-40

General Information

Clutch: Automatic CVT
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension, F / R: Double A-arm / Double Oil Damped Shock
Brakes, F / R: No / Hydraulic brake, Disc
Tires, F / R: 145x7-6 / 16x7-8
Fuel capacity: 1 gal
Weight, G.W. / N.W.: 350 / 270 lbs
Max load: 400 lbs

Dimension Information

Wheelbase: 49.6 inches
OA L x W x H: 66.1x42.5x50.4 inches
Height to seat: 7.5 inches
Min ground clearance: 3 inches
Pedal to seat back distance: 28.5 to 33 inches

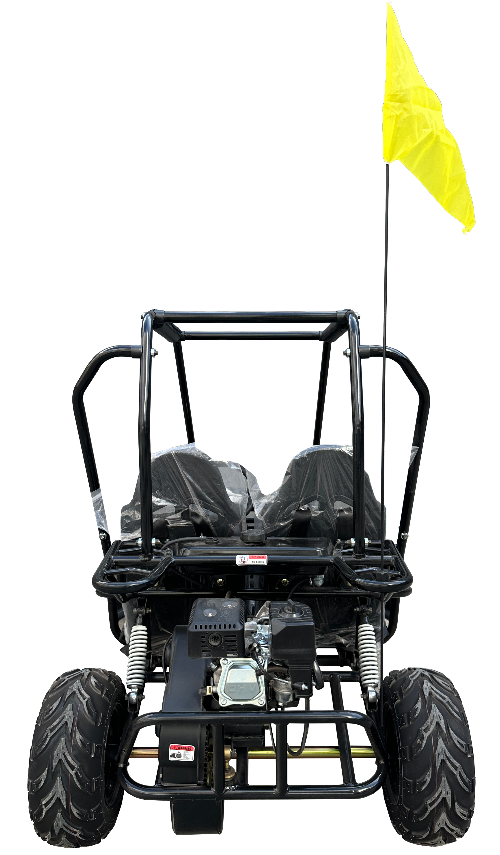

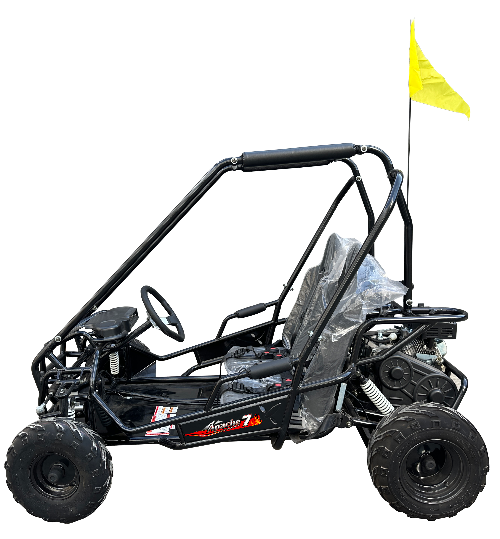

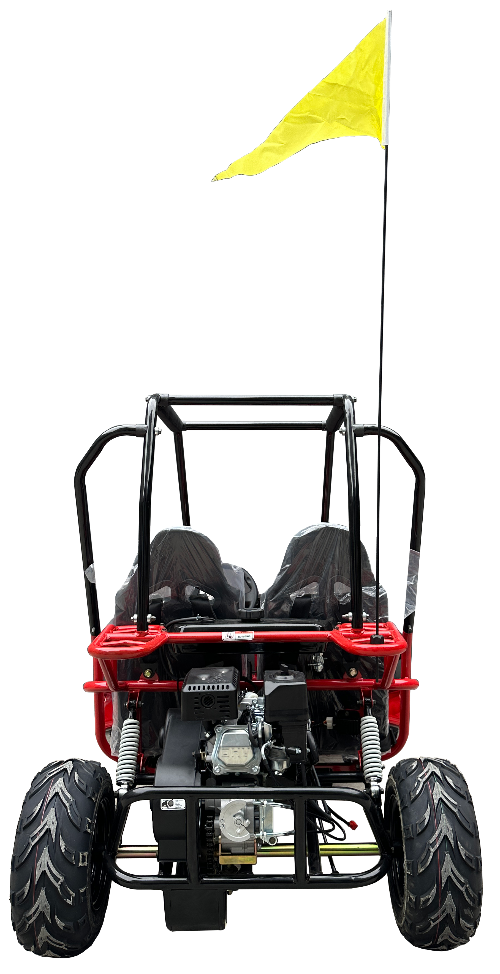

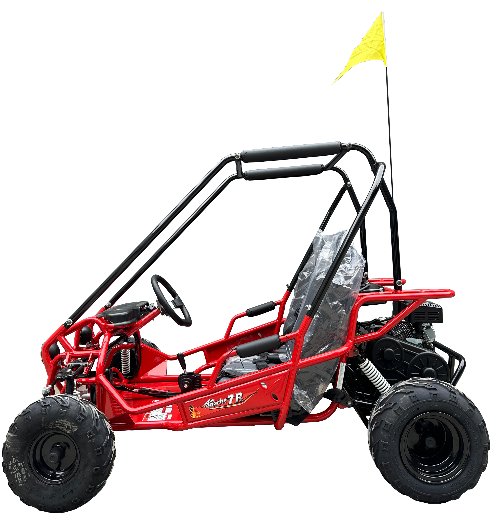

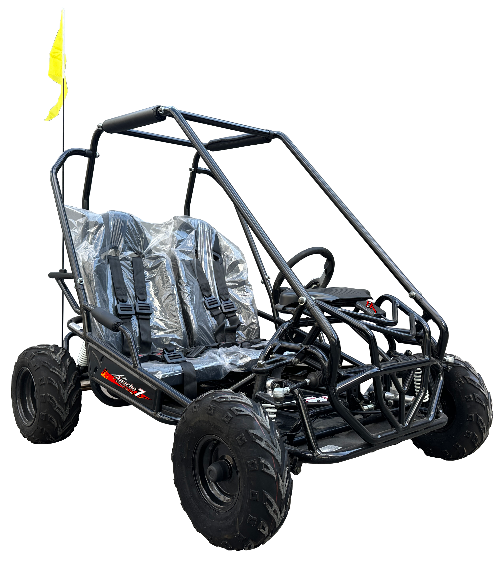

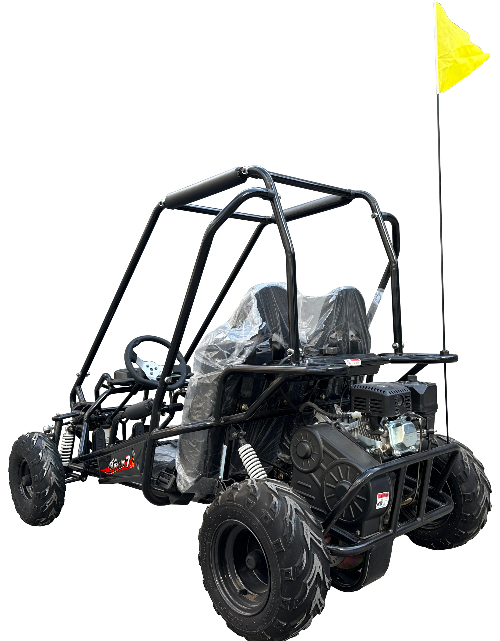

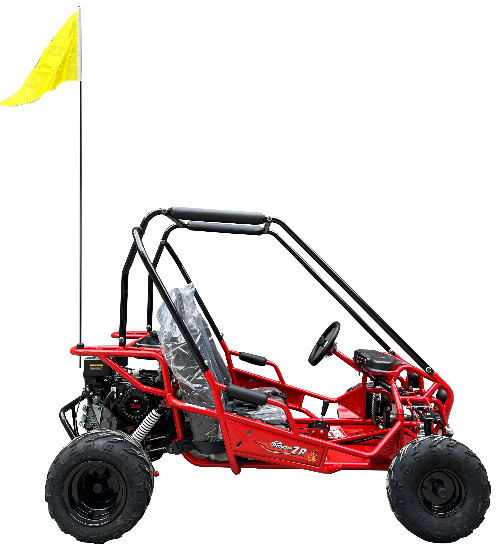

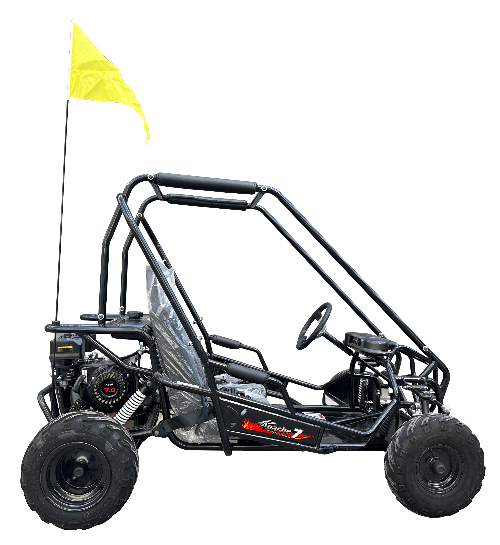

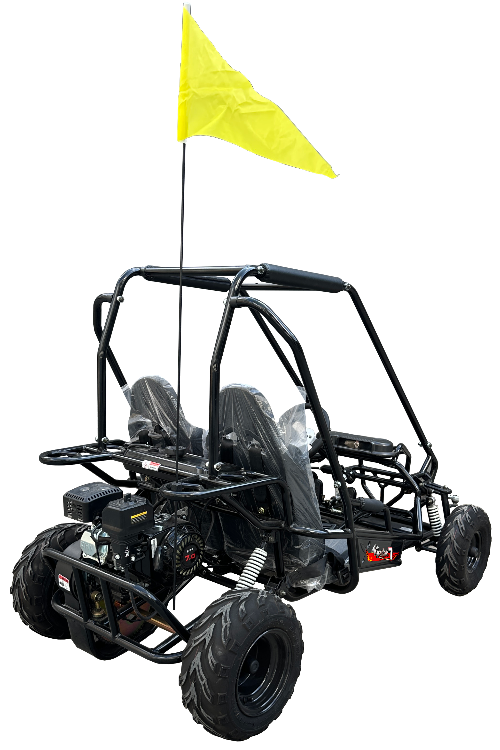

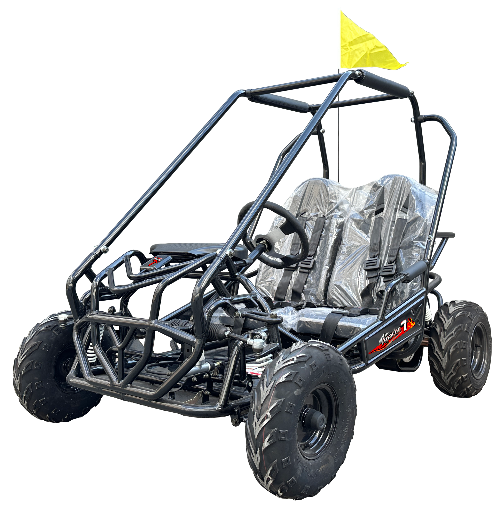

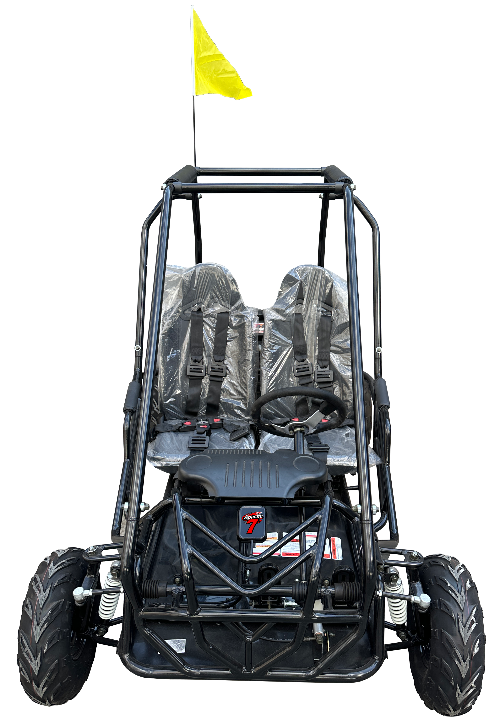

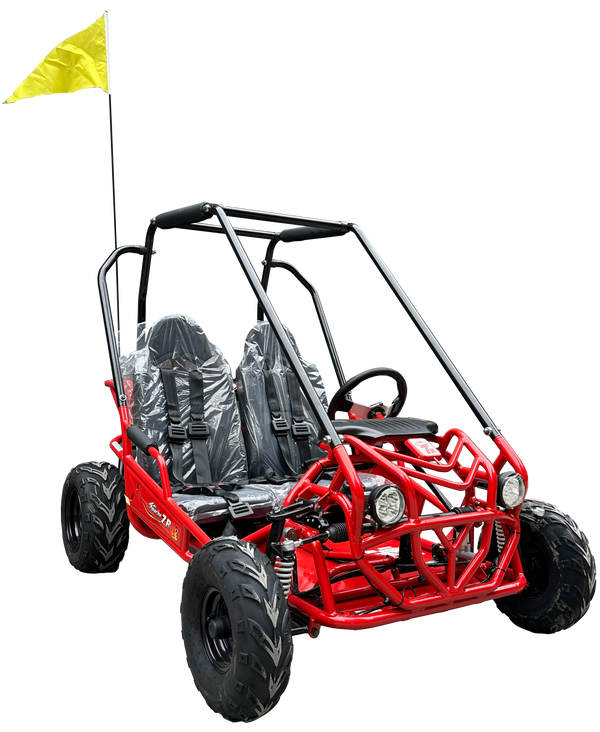

TrailMaster Apache 7 212cc Youth Go Kart for Kids Ages 10+ – Full Roll Cage, High-Back Seats, Over-the-Shoulder Harnesses, Air-Cooled Engine
